The Starter Guide to Dashboard Design

klipfolio image

Published 2024-10-14

Summary - Dashboard design is more than picking the right visualization. Learn how to design captivating and informative dashboards for you and your team.

So, you want to design a beautiful dashboard. You’ve landed in the right place! In the spirit of helping people succeed with data, I’m going to take you through the ultimate guide to dashboard design, whether you’re new to the art or you’re a seasoned expert. Either way, when you’re done, your dashboards will have everyone you know asking, “Can I do that, too?”

My hope is that by the end of this article you’ll be equipped with the information you need to start creating eye-catching and insightful dashboards. In this article I’ll cover a few important topics:

  • What is dashboard design and why does it matter?
  • The first rule of dashboard design: define your audience
  • Dashboard design best practices
  • Common dashboard design mistakes (and how to avoid them)

Ready to jump in? Let's go!

What is dashboard design and why does it matter?

Dashboard design is the process and approach you take to design your dashboard which includes everything from how to design for a specific audience to selecting and organizing data visualizations.

Dashboards display information with data visualizations. For businesses, dashboards are used to track and display KPIs, metrics, and other key data points. Designing a dashboard is a means of effective communication that users can read at a glance to understand current performance and access information that otherwise would have been layered in complex data sets.

While it may not seem like a big deal, dashboard design matters in the context of how your users interpret and action the data. Dashboards are:

  • Interactive, display live and historical data, and often bring multiple metrics together
  • A way to monitor known areas of interest or goals
  • A vital source of information for businesses and employees to make data-driven decisions

And before you even start to build a dashboard, there are a few questions you should ask yourself. This will help you to design a dashboard that people will want to reference or turn to for insights:

  • Who is my audience?
  • What information do they need?
  • What do they already know about the metrics?
  • What is their level of experience with data?
  • What are their prejudices in terms of visualizations and colours?

The dashboard design golden rule: Define your audience

A well-executed dashboard is one that communicates a clear message. It can be easy to forget that business dashboards are a communication tool used to convey information about your performance. That means that dashboards follow the same golden rule as other communication tools like a book, website, or TV show: know who your audience is.

As a writer, my first step is to define my audience before I even put pen to paper (or, uh, fingers to keyboard). What good is a piece of content if it doesn’t resonate with your audience? The same rule should be applied to dashboard design.

It’s easy to think of yourself as the default audience. And it’s easy to assume that everyone who is looking at your dashboard is on the same page. Don’t fall into that trap!

Here’s a tip: Imagine that your audience is a new employee and it’s their first day on the job. The purpose is to get them up to speed on your business performance so they can hit the ground running.

Remember, the relationship you have with your data is different from the relationship your audience has.

When it comes to your audience and your dashboard, context is king. Understanding your audience will also help you understand their needs. An executive needs a dashboard that summarizes key performance metrics to make decisions about the business, whereas a social media manager needs a dashboard that highlights key metrics from social channels like Twitter, Facebook, or LinkedIn to understand campaign performance or gaps. Understand the context of the dashboard before you begin to ensure it supports the goals and objectives of the user.

Dashboard design best practices

You can bucket dashboard design best practices into seven categories. I’ll explain each in-depth, but here’s a quick look at each best practice:

  1. Design different dashboards for different business needs
  2. Add comparison values
  3. Consider your dashboard layout
  4. Pick the right visualizations
  5. Proper use of colour
  6. Easy-to-read information
  7. Design for different displays

Design different dashboards for different business needs

Don’t cram all of your data onto one dashboard. Remember, the point of a dashboard is to be able to quickly consume insights, so if your audience can’t glean insights at a glance, there’s probably too much data on your dashboard.

  • Strategically plan your dashboard design based on different departments, campaigns, and projects
  • Create different dashboards for different business needs or data to provide quick access to KPIs and metrics that are organized in relation to one another

Add comparison values

  • Comparison values add context to current numbers by comparing them to historical values or targets
  • Comparison values in visualizations differentiate between good and bad performance at a glance
  • If you can’t come up with a meaningful comparison value for a metric, it likely doesn’t need it (and adding one just for the sake of it could distract from valuable information on your dashboard)

Consider your dashboard layout

There are five design principles that an effective dashboard layout should follow.

Hierarchy

  • Create a visual hierarchy so your information cascades intuitively and supports readability. A good rule to follow is that the most important information goes in the upper left quadrant of your dashboard.
  • Use a visual hierarchy to display the most important information first followed by secondary information
  • Consider placement and colour to ensure what you want your audience to read stands out - colour, contrast, and white space can all have a huge visual impact

Proximity

  • Related data belongs together so that users don’t have to look for related metrics across your dashboard; data points should flow logically and intuitively
  • Balance how you space your visualizations - give enough breathing room so they don’t look cluttered, but don’t give so much that it’s hard to tell what belongs together

Contrast

  • Use colour and contrast to make a specific visualization stand out
  • Use different sizes to call out various visualizations (larger visualizations could indicate an increased level of importance)
  • Use bolding to make text stand out on your dashboard

Alignment

  • As a general rule, all text should be left aligned to match the way most people read
  • Align your metrics on your dashboard for easy reading from left-to-right

Repetition

  • Reuse ideas and elements to create a common theme on your dashboard

Pick the right dashboard visualization

Choosing the right dashboard visualization for your metrics is arguably one of the most important elements of dashboard design. For an in-depth look at the types of data visualizations available for your dashboard, check out our guide to data visualization.

You can choose from a number of visualization types to visualize your data. This is an inclusive list of data visualization types available in PowerMetrics:

  • Bar chart
  • Line chart
  • Pie or donut chart
  • Tree map
  • Radar chart
  • Waterfall chart
  • Heat map
  • Summary chart
  • Table
  • Scatter or bubble chart
  • Combination chart

Here’s a brief overview of four population visualization types and tips on when and how to use them effectively in your dashboard design.

Tables

Tables organize data into columns and rows. Tables are also one of the most flexible dashboard data visualizations because you can use it to display graphical elements like bullet charts, sparklines and icons. Additionally, tables can be configured to have drill down functionality or create a heatmap.

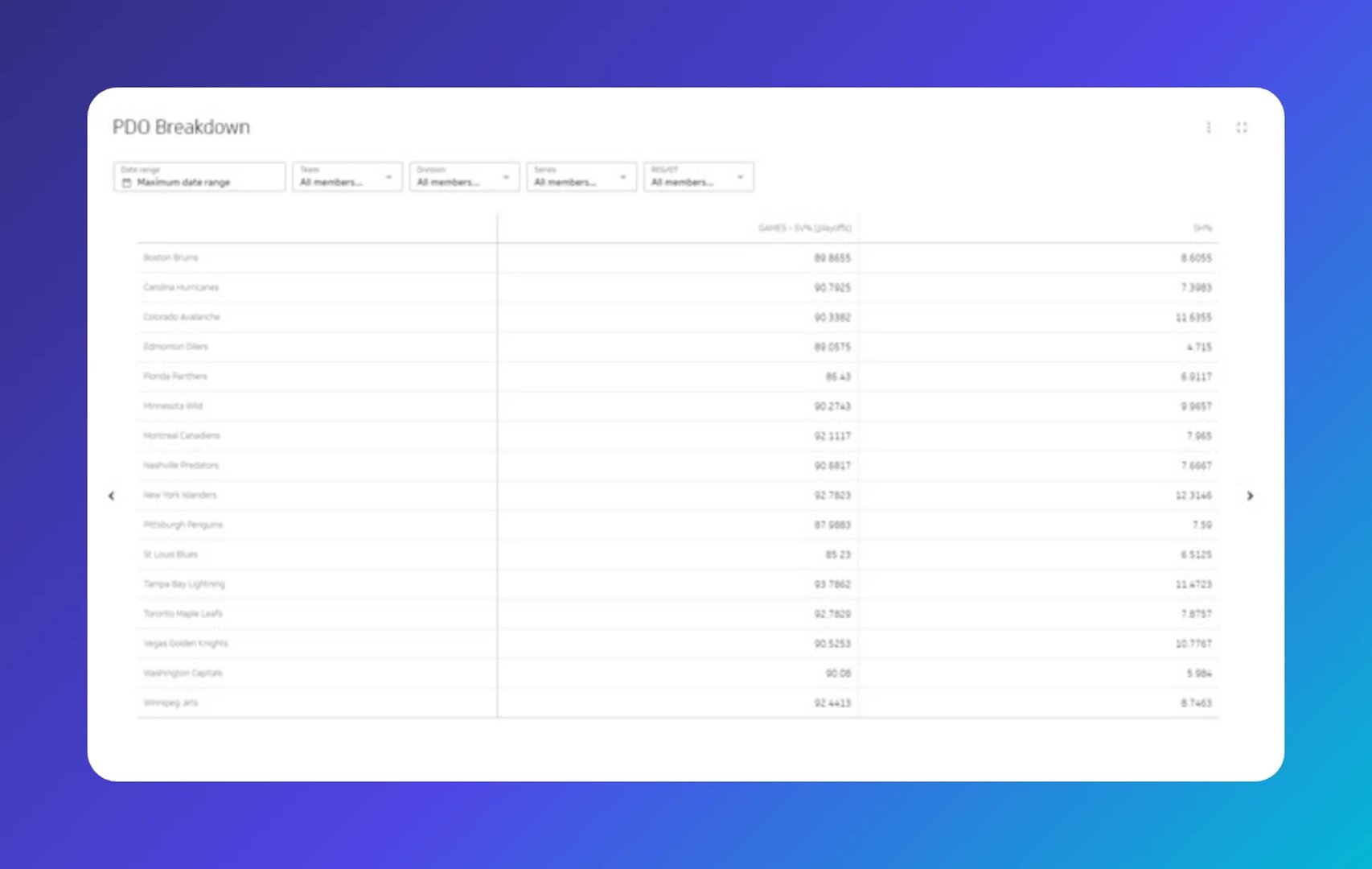

Guide to Dashboard Design   Table

When do I use a table to visualize my data?

  • To display two-dimensional data sets that you can organize by category
  • To add additional graphical elements like a bullet chart to add context
  • To drill down large data sets that have a natural drill path, for example, Country > Province > City

Line charts

Line charts plot a series of data points on a graph and then connect those dots with a line to show patterns in the data. Line charts are an ideal visualization if you are trying to spot trends and patterns, but keep in mind that line charts don’t display the exact values (but you can select the values as labels in PowerMetrics).

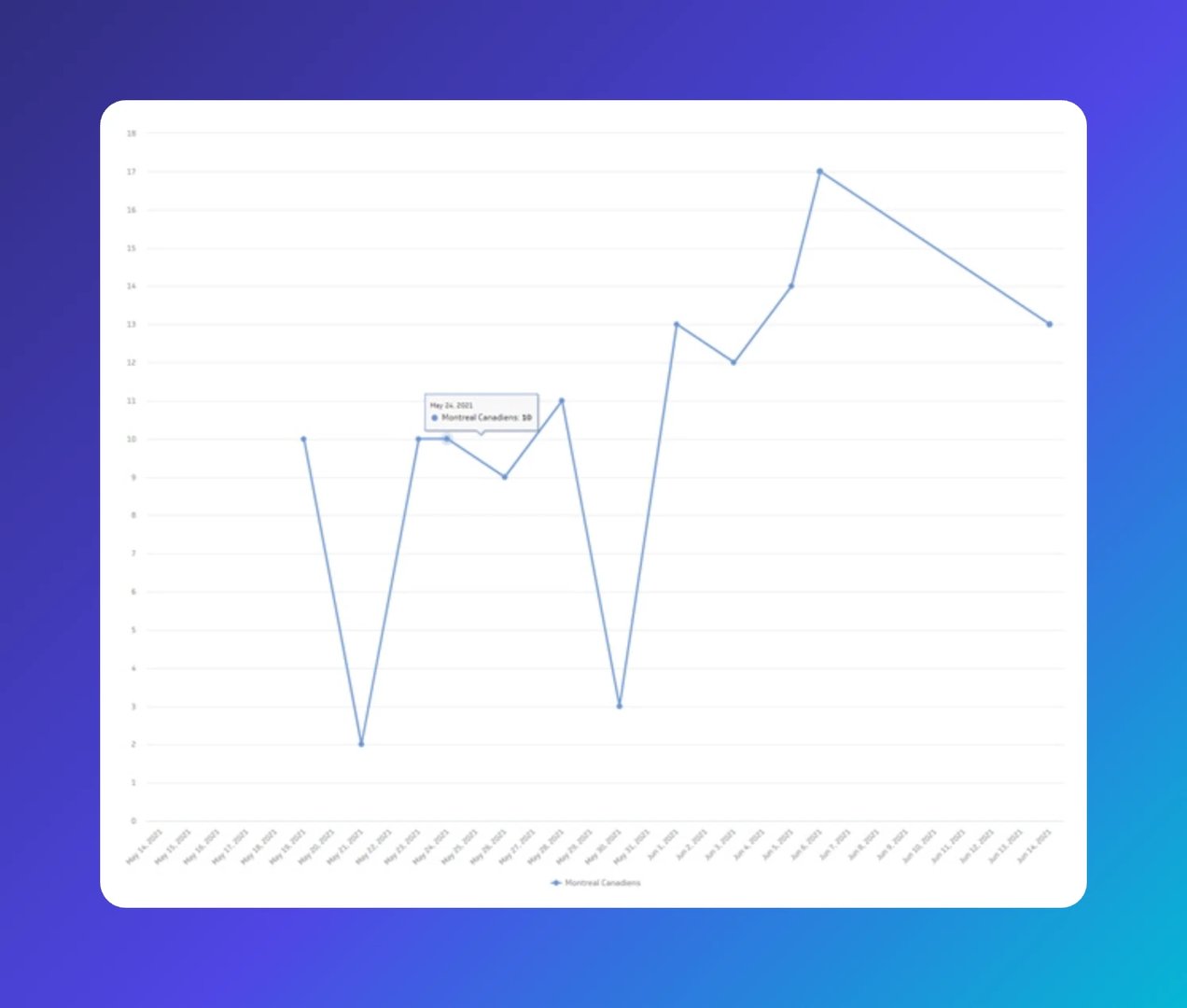

Guide to Dashboard Design   Line Chart
Supercharge your analytics

Harness the power of data-driven decision making.

Get Started Free

When do I use a line chart to visualize my data?

  • For time-series oriented data points
  • To understand general trends, fluctuations and patterns associated with your data set
  • To compare two or more related data sets
  • To compare trends over time

Bar or column charts

Bar charts or column charts display values as rectangular bars to compare categorically-related values along an axis. For example, displaying values associated with different countries makes sense because there is a category relationship.

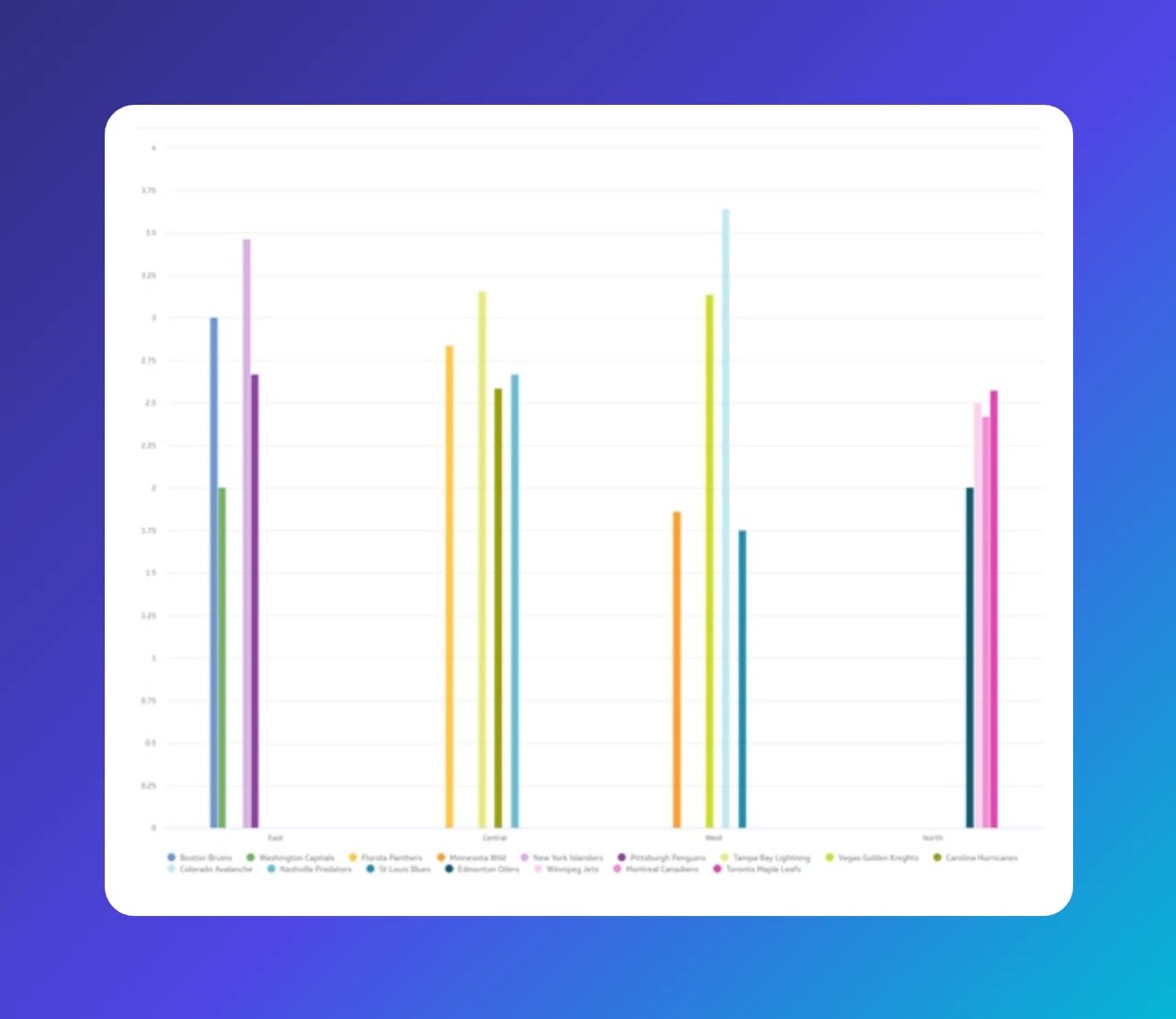

Guide to Dashboard Design   Bar Chart

When do I use a bar chart to visualize my data?

  • Compare two or more values that fall within the same category
  • To display your categorical data as a stacked bar or column to see the total value segmented by each subtotal

Pie or donut charts

Like bar charts, pie or donut charts display categorical data but divide it into sections (like wedges of a pie or donut) so you can see each section’s value in comparison to the whole. To see the specific values for each segment, you can hover over with your mouse to see the tooltip.

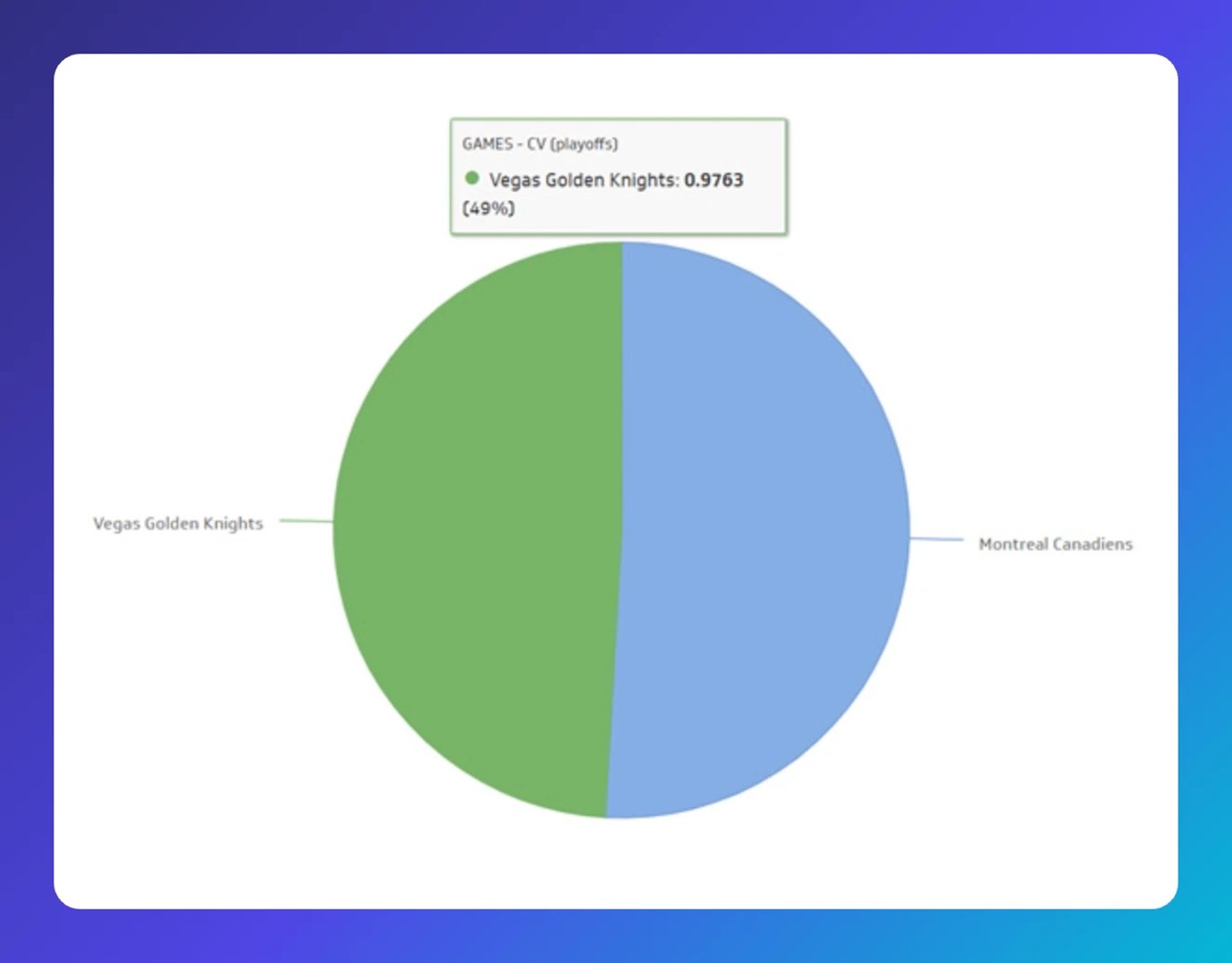

Guide to Dashboard Design   Pie Chart

When do I use a pie chart to visualize my data?

  • To quickly convey information without too many segments (this can weaken the impact of the visualization)

Proper use of colour

As a general rule, it’s best to use desaturated colours for visualizations. Saturated colours have a time and place — use them to strategically draw attention to changes and indicators in your data.

Be consistent with your use of colour for the same data on different charts. For categories that have an inherent sequence or relationship like time, risk levels, grade levels, or lead progression, make it easy for users by using the same hue for all items, but varying the saturation of the colour.

Traffic light colours—red, green, and yellow—should be used sparingly. Major problems should be red and opportunities should be green so that they stand out on your dashboard. Yellow typically represents a middle ground, so it may not have the same visual impact on a dashboard. Our advice is to steer clear of yellow!

Make sure your information is easy to read

Establish and implement a limited set of consistent symbols on your dashboard to make for easy reading.

I mentioned it earlier, but dashboards should be designed so that your most important information is in the upper left quadrant to match the way we intuitively read information.

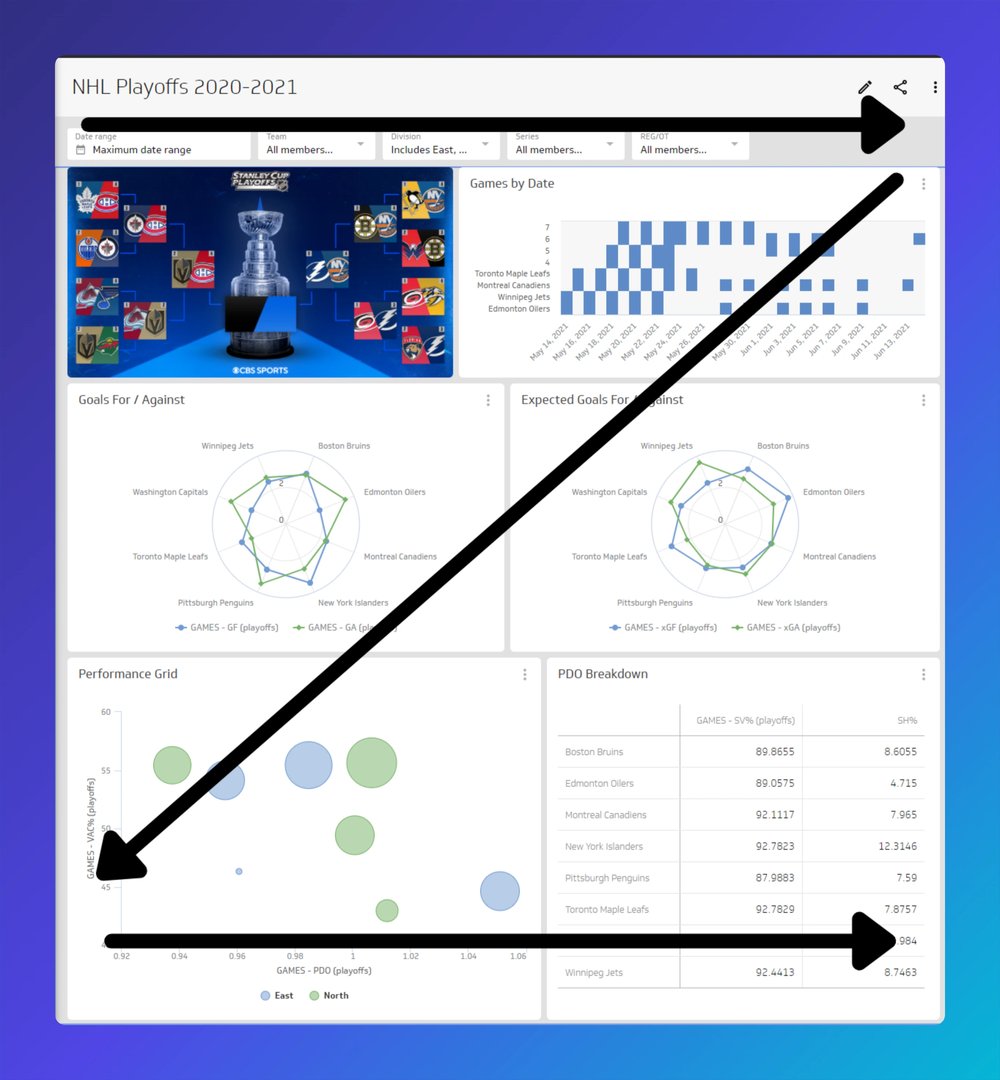

This is a really great visual representation of a dashboard layout so the information is easy to read at a glance.

Starter Guide Dashboard Design Readability with Arrows

Design your dashboard for different displays

Dashboards can be displayed on various devices, from mobile phones or tablets to online browsers or TV displays.

When designing a dashboard for mobile or tablet display, remember to:

  • Err on the side of simple and minimalistic
  • Use minimal amount of text for clear and concise display on a small screen
  • Shorten your metric titles where applicable
  • Use menus and filters to simplify complex data sets

When designing a dashboard for online browser display, remember to:

  • Keep responsive design in mind; ensure your metrics are sized appropriately so that if your browser window shrinks the metrics on your dashboard are still legible
  • Use this as an opportunity to build dashboards that allow for analytical exploration since users will likely be viewing at their desk and able to focus for a longer period of time (vs on-the-go exploration on mobile)

When designing a dashboard for TV display, remember to:

  • Trim content to make it easy to view from a distance
  • Save space by removing axis labels if they are implied or redundant
  • Keep responsive design in mind; ensure your metrics are sized appropriately so that if your browser window shrinks the metrics on your dashboard are still legible

4 common dashboard design mistakes (and how to avoid them)

We all make mistakes, it’s human nature. But when it comes to dashboard design, we’ve seen a few repeat offenders. On that note, I thought it would be best to share the most common dashboard design mistakes to avoid so you can focus on what matters: getting the right information to the right people at the right time.

1. Building a one-size-fits-all dashboard

Building a one-size-fits-all dashboard is a common design mistake. One-size-fits-all dashboards are usually the product of building a dashboard that focuses on the data itself (what type of data is available, what’s important enough to go on the dashboard, and what’s the best way to visualize the data) instead of the story the data is supposed to tell.

Because of the vast size and scope of a one-size-fits-all dashboard, they are typically abandoned or underused shortly after they are created. And no one wants to put time and effort into a dashboard that isn’t going to get eyeballs on it!

Truthfully, when it comes to dashboard design, one-size-fits nobody.

Create one dashboard for each role within your audience. I know this sounds like a lot of work, but the pay-off is worth it. One dashboard per role reduces the need for extensive filtering and segmentation to get to the data, and delivers the information into a single at-a-glance display.

Here are two tips to design a role-based dashboard:

  1. Figure out who your dashboard is for and identify the metrics and KPIs that are important to add to that dashboard.
  2. Start with the junior roles first to accelerate your dashboard design. Oftentimes, senior roles are looking at the same metrics as junior roles, but it’s a more aggregated version of the data. Tackling the junior role dashboards first will help you speed up the creation of additional dashboards.

2. Not adding comparison values

I mentioned the importance of comparison values earlier when I discussed best practices, but it’s worth noting it here again. Comparison values on a dashboard add value for your users.

Unless you are familiar with your data history or targets for sales, numbers on a dashboard without a comparison value may raise more questions than provide answers. Without an indicator, how are you supposed to know if those numbers are normal or cause for concern?

Comparison values compare current numbers to historical values (like yesterday’s leads) or to targets to put today’s numbers into context.

A guiding principle for comparison values is that it should be meaningful to users. Most comparison values fall into one of the following categories:

  • Comparison against a set target (current average customer satisfaction rating vs. target rating set by the business)
  • Comparison against a preceding period (today vs. yesterday)
  • Comparison against a prior equivalent period (this week vs. same week last year)
  • Comparison against a trailing average (today vs. an average of previous 30 days)
  • Comparison against a projection (current cumulative total vs. expected total for this point in time)
  • Comparison against another metric (new account activations vs. account cancellations)

3. Choosing the wrong data visualization

Not all data visualizations work on a dashboard. Charts and graphs are certainly popular choices due to their compact display and easy readability to glean insights and see patterns, but they aren’t always the right choice either. In the end, it depends on what data you want to display.

When it comes to picking a data visualization, consider this:

Type of visualizationCompactnessRapid scannabilityClarityPrecisionFamiliarity
Line chart
Bar chart
Pie chart
Gauges
Scatter plots

4. Making users "do the math"

Dashboards enable decision-makers to consume information quickly, right? Making users “do the math” is when you present information on a dashboard that forces users to do the calculations themselves to get the information they need. It’s a design mistake that can drastically increase the amount of time spent trying to make sense of the information, even on a simple dashboard.

How do you know that your users aren’t quickly getting the information they want? Ask for feedback after they review the information on your dashboard. If your users are consistently looking between two charts or scribbling numbers on a notepad to understand what the data means, it’s a good indicator that you should revisit your design. Providing a fully functional dashboard requires thought on the part of the designer - it’s one of the main reasons you need to understand your audience and their KPIs.
